OGD-22A Book Binding Hot Melt Adhesive

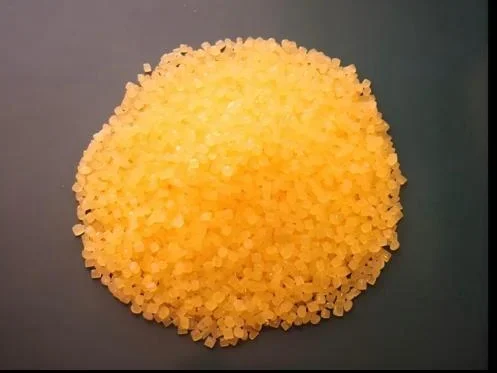

OGD-22A is a light yellow, transparent, granular, non-toxic hot melt adhesive, specially developed for side bonding of hardcover and premium paperback book covers, suitable for the cover lamination process of albums, hardcover books, and high-end publications. With excellent flowability for easy thin coating, high bond strength with lasting crack resistance, and stringing-free application throughout, it has a Gardner color of 1–3 (light transparent yellow), which will not stain light-colored laminated covers. It is the dedicated adhesive for high-quality book edge and cover side lamination.

Description

I. Precautions

1. Do not keep the melting temperature above 170°C for extended periods; high temperatures will reduce transparency, cause yellow stains on cover edges, and shorten curing durability.

2. Close the tank lid promptly after feeding; dust falling into the adhesive will form white particle blemishes on laminated covers, damaging the appearance of premium publications.

3. For special thick art paper and matte laminated covers, appropriately extend the open time to ensure the adhesive fully wets the coating, preventing cover peeling.

4. After side-gluing, allow books to rest until fully cured before stacking and packing; pressure applied before setting may cause cover shifting and adhesive squeeze-out at the edges.

5. Filter sediment from the bottom of the tank before daily line shutdown to reduce carbon deposits clogging the glue application nozzles.

II. Core Advantages

1. Dedicated formula for high-end book cover side gluing, transparent without ruining the premium appearance: Light yellow transparent pellets cure into a thin, clear adhesive layer with no heavy white edges or yellow stains — suitable for light-colored, matte, and laminated premium album covers, leaving clean, refined finished edges.

2. Low viscosity with high flowability for even thin coating on narrow edges: The 4,500 cP low-viscosity system offers excellent flow, enabling thin coating on narrow book cover edges without adhesive overflow staining printed cover graphics — compatible with high-speed hardcover side-gluing machines.

3. Extra-long open and setting window for high tolerance in manual hardcover operation: With an open time of 15–20 seconds and a setting time of 20–30 seconds, operators have ample time to align and correct the cover edges, greatly reducing misaligned covers and weak-bond defects.

4. High bonding durability, covers stay flat through repeated use: The cured adhesive layer is flexible and fold-resistant — under long-term reading and stacked storage, hardcover side edges do not crack or lift, and resist ink erosion without delamination.

5. Stringing-free coating, clean side edges without adhesive filaments: Stable melt leveling keeps roller and narrow-slit spray coating stringing-free throughout, leaving clean edges on high-end publications without secondary trimming to remove adhesive filaments — improving binding efficiency.


Specifications

Brand

OGD

Model

OGD-22A

Specification

light yellow transparent

Material

Low-temperature flexible hot melt system for printing applications

Storage Condition

Store sealed in double moisture-proof bags in a cool printing warehouse, with ambient humidity ≤ 60%, away from heat sources such as binding machine drying equipment to prevent premature softening and sticking of the pellets. Do not stack the pellets more than 6 layers high to avoid caking under heavy pressure. Use within 7 days after opening, and seal the bag opening tightly to keep the remaining material from moisture. Store separately from the book spine adhesive OSD-21A.

Viscosity at 165C

4500±500 CPS

Working temperature

150℃–170℃

Ring & ball softening point

75±2℃

SHIPMENT

At Ougude Hot Melt Adhesive, every shipment represents our commitment to quality, reliability, and customer satisfaction. From raw material selection to final delivery, we maintain strict quality control standards throughout every stage of production.

With advanced manufacturing facilities, modern testing equipment, and an experienced technical team, each batch of hot melt adhesive undergoes rigorous inspection to ensure consistent performance, strong bonding strength, and stable quality. Before shipment, every order is carefully checked, securely packaged, and prepared according to international transportation requirements.

ougude factory workers are helping customers pack products.

INSPECTION PRODUCTION

At Ougude Hot Melt Adhesive, quality is at the core of everything we do. Equipped with advanced laboratory instruments and comprehensive testing systems, our experienced quality control team carefully evaluates every batch of raw materials and finished products to ensure consistent bonding performance, thermal stability, viscosity accuracy, and long-term durability.

From incoming material inspection to in-process monitoring and final product verification, every stage of production follows strict quality management procedures. Our commitment to precision manufacturing and continuous improvement ensures that each hot melt adhesive product meets international quality standards and delivers reliable performance across a wide range of industrial applications.

Through rigorous testing, strict process control, and attention to every detail, we provide customers with dependable adhesive solutions they can trust for packaging, woodworking, mattress manufacturing, automotive assembly, hygiene products, and many other industries worldwide.

1728468312757048

PRODUCTION ENVIRONMENT

OuGuDe boasts a highly efficient and modern production environment dedicated to manufacturing top-quality glue sticks and granules. Equipped with advanced machinery and operated by experienced technicians, we ensure that every step of the production process is meticulously controlled to meet international standards.

OGD

APPLICATION SCENARIOS

The environment-friendly hot melt adhesives are used in various automatic production lines, such as carton sealing, cigarette stick bonding, color box packaging, wood edge sealing, book binding, print lamination, the air filter, the shoe industry and sanitary products.

application of hot melt adhesive
