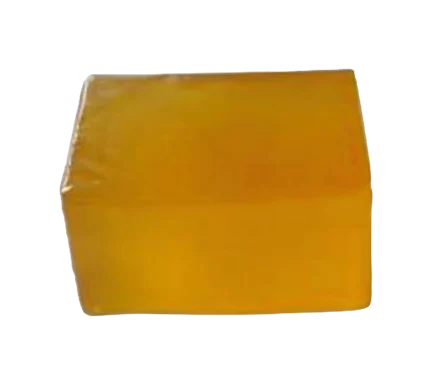

OGD-11B Hot Melt Adhesive for Waterproof PE Courier Bags

OGD-11B is a light-yellow transparent, non-toxic hot melt adhesive in block form, primarily developed for courier bag sealing. It is also suitable for bonding and lamination of adhesive-backed bags, paper products, metal, plastic, and nonwoven fabrics.

With a melt viscosity of 4,500 cps at 170°C and a Ring and Ball Softening Point of 70°C, OGD-11B provides an initial tack of >18# copper ball and a peel strength of >15 N/in. The recommended operating temperature is 165–180°C.

Formulated for waterproof PE films, OGD-11B provides strong initial tack and cohesive strength, with minimal stringing during coating and good resistance to oil penetration. It is supplied with white release paper and is compatible with transfer coating equipment, allowing the adhesive to transfer smoothly from the release liner onto PE bag surfaces.

OGD-11B is suitable for high-volume production of waterproof PE courier bags and related packaging applications.

Description

Precautions

01. Temperature Control
Do not operate continuously above 180°C for extended periods, as prolonged exposure to high temperatures may accelerate adhesive aging and affect tamper-evident sealing performance.

02. Remove the Release Paper Before Melting
Remove the outer white release paper before feeding the adhesive into the melting tank. Do not place the release paper into the tank, as foreign material may cause nozzle or coating equipment blockage.

03. Adjust Temperature According to Line Speed
Fine-tune the application temperature according to the coating machine's operating speed to maintain smooth and consistent adhesive transfer.

04. Allow Sufficient Cooling Before Rewinding
After coating and lamination, allow the adhesive layer to cool and set sufficiently before rewinding to help prevent adhesive layer displacement and poor transfer.

05. Refer to the MSDS
Store this adhesive separately from other hot melt adhesive grades to prevent accidental mixing or misuse.

Key Benefits

01. Optimized for Waterproof PE Films
Specially formulated for waterproof PE courier bags, providing improved adhesion to polyethylene substrates and reliable sealing performance for moisture-resistant packaging.

02.High Initial Tack for High-Speed Production
With an initial tack of >18# copper ball, the adhesive provides quick bonding and positioning, supporting continuous high-speed coating processes for courier bag production.

03. Balanced Cohesive Strength and Oil Resistance
Provides balanced cohesive strength and good resistance to oil and grease penetration, helping maintain sealing performance under different storage and transportation conditions.

04. Smooth Coating with Minimal Stringing
Stable melt flow and leveling performance help minimize stringing during high-speed coating, contributing to a clean and consistent bag surface.

05. Smooth Transfer Coating Performance
Its moderate viscosity supports smooth transfer of the adhesive from the release liner to PE film, helping maintain consistent coating coverage during production.

06. Multi-Substrate Compatibility for Flexible Production
In addition to waterproof PE courier bags, OGD-11B can be used with adhesive-backed bags, paper, plastics, and nonwoven fabrics for various packaging applications.



Specifications

Brand

OGD

Model

OGD-11B

Specification

Appearance: Light-yellow transparent adhesive blocks
Melt Viscosity: 4,500 cps at 170°C
Softening Point: 70°C (Ring and Ball Method)
Initial Tack: >18# copper ball
Peel Strength: >15 N/in
Safety & Environmental Profile: Non-toxic and environmentally friendly
Operating Temperature: 165–180°C

Material

Optimized for PE Substrates: Specially formulated for PE films, providing improved wetting and adhesion on difficult-to-bond PE surfaces.
Balanced Cohesive Strength and Oil Resistance: Provides balanced cohesive strength and good resistance to oil and grease penetration, helping maintain sealing performance under both high- and low-temperature conditions.
Stable Transfer Coating Performance: Provides smooth and consistent adhesive transfer, making it suitable for high-speed courier bag coating production lines.

Storage Condition

Store the adhesive blocks with release paper in a cool, dry, well-ventilated warehouse away from heating equipment to prevent softening and sticking caused by heat. Stack the blocks flat and avoid heavy loads that may cause deformation. Protect the material from dust and contamination. Shelf life: 12 months.

SHIPMENT

At Ougude Hot Melt Adhesive, every shipment represents our commitment to quality, reliability, and customer satisfaction. From raw material selection to final delivery, we maintain strict quality control standards throughout every stage of production.

With advanced manufacturing facilities, modern testing equipment, and an experienced technical team, each batch of hot melt adhesive undergoes rigorous inspection to ensure consistent performance, strong bonding strength, and stable quality. Before shipment, every order is carefully checked, securely packaged, and prepared according to international transportation requirements.

ougude factory workers are helping customers pack products.

INSPECTION PRODUCTION

At Ougude Hot Melt Adhesive, quality is at the core of everything we do. Equipped with advanced laboratory instruments and comprehensive testing systems, our experienced quality control team carefully evaluates every batch of raw materials and finished products to ensure consistent bonding performance, thermal stability, viscosity accuracy, and long-term durability.

From incoming material inspection to in-process monitoring and final product verification, every stage of production follows strict quality management procedures. Our commitment to precision manufacturing and continuous improvement ensures that each hot melt adhesive product meets international quality standards and delivers reliable performance across a wide range of industrial applications.

Through rigorous testing, strict process control, and attention to every detail, we provide customers with dependable adhesive solutions they can trust for packaging, woodworking, mattress manufacturing, automotive assembly, hygiene products, and many other industries worldwide.

1728468312757048

PRODUCTION ENVIRONMENT

OuGuDe boasts a highly efficient and modern production environment dedicated to manufacturing top-quality glue sticks and granules. Equipped with advanced machinery and operated by experienced technicians, we ensure that every step of the production process is meticulously controlled to meet international standards.

OGD

APPLICATION SCENARIOS

The environment-friendly hot melt adhesives are used in various automatic production lines, such as carton sealing, cigarette stick bonding, color box packaging, wood edge sealing, book binding, print lamination, the air filter, the shoe industry and sanitary products.

application of hot melt adhesive
